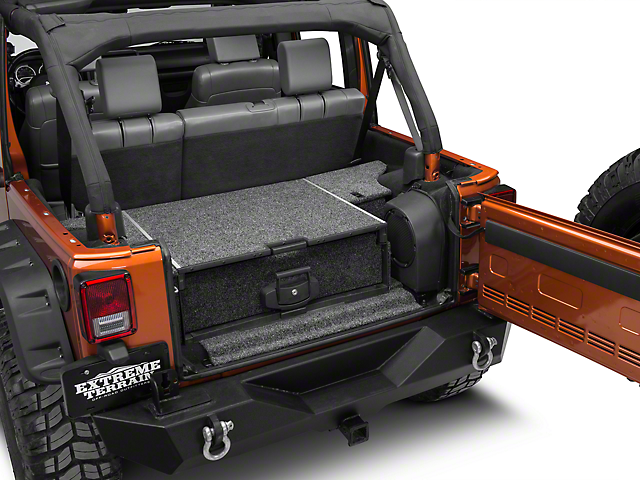

Jeep JK ARB drawer system installation requires careful measurement and bolt-on mounting. You typically need about 3 to 5 hours for a clean install. Always consult the manufacturer manual before drilling.
Secure all hardware to proper torque specs to prevent rattles while off-roading.
Image source: Bing (Web (fair-use with source credit))
If you're organizing recovery gear, tools, or a fridge setup, this project pays off fast. Manufacturer specifications indicate proper rail alignment prevents drawer binding and premature wear. The core challenge is getting the rails perfectly parallel before you drill permanent holes.
Once you do, the rest slides together smoothly. Let's walk through each step without skipping the parts that trip people up.
Why Visual Reference Matters for This Install
What makes the ARB drawer install uniquely visual
You can't wing this install by reading alone. The drawer rails must align with structural points in the Jeep JK floor pan. One millimetre of misalignment can mean stripped threads or a wobbly drawer that won't lock properly.
Photos and diagrams show exactly which rivets to remove and where bolts seat. That visual guidance prevents costly mistakes like drilling into hidden wiring or fuel lines.
How photos, diagrams, and close-ups prevent costly mistakes
Close-up images reveal subtle details like bracket orientation, shim placement, and grommet routing. Without them, you might cross-thread a bolt or skip a critical step. Visual references also clarify which factory trim clips are reusable versus replaceable.
That alone saves time and avoids damage during reassembly. If you ever work through another major mod like how to install a Jeep JK hood, visual guides are just as essential there.
Where to find official and community visual guides
Start with the official ARB installation manual for your specific drawer model. Those manuals include exploded views and torque charts. Community forums like Wrangler TJ and JK sites also host real install photos from actual builds.
Look for threads tagged "step-by-step" or "installation log." Bookmark them alongside the manufacturer doc. Having both sources helps you verify each visual cue before you commit.

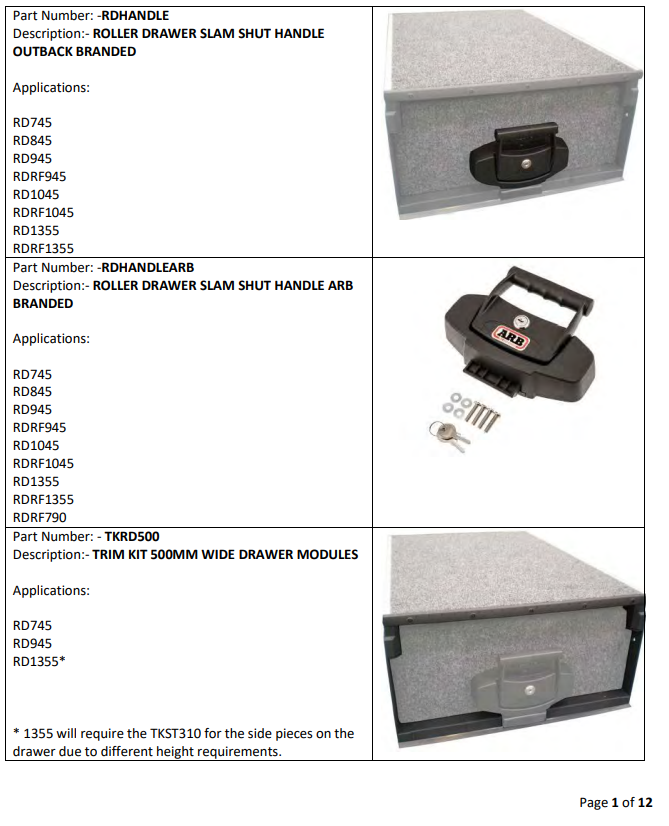

Unboxing & Inventory Checklist
Confirming every part before you start drilling
Open the box and lay out every component on a clean surface. Compare each piece against the packing slip and parts list in the manual. Missing hardware shows up faster when everything is visible.
It's much harder to spot a gap later once brackets are bolted down. Double-check bolt lengths, washers, and locking nuts before moving forward.
Identifying hardware, brackets, rails, and inserts
Group similar items together so you can grab them quickly during assembly. You should have mounting rails, support brackets, drawer slides, and a full hardware bag. Some kits include threaded inserts or self-tapping screws depending on your vehicle.
Verify each bracket matches the diagram in the manual. Mismatched parts lead to alignment headaches down the line.
Spotting missing or damaged components early
Inspect every metal piece for shipping dents, burrs, or missing welds. Damaged rails cause drawer binding or uneven movement. Check plastic trim pieces for cracks.
If anything is wrong, contact the retailer immediately. Don't proceed with a partial or damaged kit. Resolving issues upfront saves frustration during the install.
Image source: Bing (Web (fair-use with source credit))
| Component | What to check |
|---|---|
| Mounting rails | Straight, no bends or rust spots |
| Support brackets | All holes clear, thread inserts intact |
| Drawer slides | Roll smoothly, no binding |
| Hardware bag | Count every bolt, nut, and washer |
| Plastic trim clips | None cracked or stripped |
Preparing Your Jeep JK for the Install
Removing rear seats and interior trim correctly
Start by disconnecting the battery if your drawer kit includes wiring. Remove the rear seats following the manufacturer's release sequence. Use a trim tool to gently pop interior panels without snapping clips.
Label every clip and fastener as you go. Keeping them organized prevents lost pieces during reassembly.
Locating safe drill points on the floor pan
Mark potential drill locations using a tape measure and masking tape. Avoid areas near fuel lines, brake lines, and wiring harnesses. Consult your Jeep JK service manual for floor pan cross-section diagrams.
Some builders use a magnet probe to detect hidden studs. Never guess a drill location. Always verify clearance on both sides of the metal.
Checking spare tire, jack, and clearance zones
Confirm the drawer will clear the spare tire carrier when lowered. Measure the height needed for your jack and recovery gear. Ensure the drawer slides fully without hitting suspension components.
Test the range of motion with temporary brackets before permanent mounting. Clearance checks prevent painful rework after everything is bolted down.
Step-by-Step Rail Mounting (With Visual Cues)
Marking and aligning rails without crooked cuts
Lay the mounting rails on the floor pan and mark hole positions with a marker. Use a level to ensure rails sit parallel to the vehicle centreline. Double-check measurements from both sides to catch any偏差.
Crooked rails cause the drawer to bind or sit unevenly. Take your time here because corrections are tedious once bolts are torqued.
Drilling pilot holes and installing threaded inserts
Drill pilot holes at the marked positions using the recommended bit size. Clean metal shavings thoroughly before proceeding. Tap threads or install inserts as specified in the manual.
Apply thread locker to bolts if the kit recommends it. Insert bolts loosely at first to verify alignment before final tightening.
Torquing bolts to manufacturer specs
Use a torque wrench to tighten all mounting bolts to the specified value. Over-torquing can warp brackets or strip threads. Under-torquing leads to rattles and loose hardware on rough trails.
Recheck torque after the first few off-road runs. Thermal cycling and vibration can loosen fasteners over time.
Image source: Bing (Web (fair-use with source credit))
| Step | Action | Key tip |
|---|---|---|
| 1 | Position rails and mark holes | Use masking tape for clean marks |
| 2 | Drill pilot holes | Clean shavings thoroughly |
| 3 | Install threaded inserts | Follow manual torque sequence |
| 4 | Bolt rails loosely | Verify alignment before final torque |
| 5 | Torque to spec | Recheck after initial trail use |
Routing Electrical Cables & Fridge Wiring
Finding safe paths away from fuel and brake lines
Identify cable routes that avoid moving suspension parts and hot exhaust components. Use existing grommets and factory loom channels whenever possible. Route wires through the firewall using rubber grommets to prevent chafing.
Secure cables with zip ties or loom every few inches. Loose wires can vibrate against sharp edges and fail prematurely.
Securing cables with loom and grommets
Run electrical loom along the selected path and secure it with adhesive-backed clips. Trim grommet holes carefully to maintain a snug fit. Push cables through grommets before mounting brackets to avoid tight squeezes later.
Label both ends of each wire with durable tags. Clear labeling simplifies troubleshooting months down the line.
Testing connections before closing everything up
Connect the fridge or accessory power harness and test functionality before reinstalling trim. Use a multimeter to verify stable voltage under load. Check for voltage drop across long cable runs.
If anything flickers or dims, inspect connections and ground points. Fixing wiring issues now prevents headaches once the interior is back together.
Electrical safety matters when modifying vehicle systems. Proper insulation and secure routing protect against short circuits and fire risk. Follow NHTSA vehicle modification guidelines for safe aftermarket electrical work.
When in doubt, consult a certified automotive electrician. Getting wiring right ensures reliable operation on remote trails where help is far away.
Installing the Drawer Slides & Assembly
Sliding the unit onto rails without forcing it
Align the drawer slide carriers with the mounted rails and lower them evenly. Both sides must engage at the same time to prevent binding. If one side drops faster, stop and realign before applying pressure.
Forcing the slides cracks brackets or damages the rail surface.
Aligning slides for smooth full-extension movement
Pull the drawer through its full range after initial seating. Check for consistent resistance along the entire travel path. Any sticking points usually indicate misaligned rails or debris in the slide channels.
Adjust bracket positioning slightly if one side binds more than the other.
Checking for binding or uneven gaps
Measure the gap between the drawer front and the vehicle floor at multiple points. Uneven gaps suggest the rails aren't parallel or the floor surface isn't flat. Shim underneath low spots using thin metal washers or purpose-built spacers.
Recheck alignment after shimming and before final torque.
Image source: Bing (Web (fair-use with source credit))
| Symptom | Likely Cause | Fix |
|---|---|---|
| Drawer binds on one side | Rail misalignment | Loosen bolts, reposition rail, retorque |
| Uneven front gap | Floor pan irregularity | Add shims under low bracket points |
| Slide feels gritty | Debris in channel | Clean tracks, apply dry lubricant |
| Rattling during motion | Loose hardware | Torque all fasteners to spec |
For owners balancing interior comfort with utility, some builders reference best Jeep heated seat options to maintain cabin quality alongside rugged storage upgrades.
Common Visual Mistakes & How to Avoid Them
Cross-threading bolts and stripped holes
Cross-threading happens when you start a bolt at an angle or force it instead of guiding it by hand. Always begin every fastener by turning it counter-clockwise until you feel it seat properly. If resistance spikes early, back out and inspect the threads.
Stripped threads in the floor pan require helicoil inserts or drilled-and-tapped repair.
Over-tightening brackets and cracking the floor pan
The Jeep JK floor pan is thin stamped steel. Excessive torque warps brackets and cracks surrounding metal. Use a torque wrench and never guess at tightness.
When in doubt, start at 70 percent of the specified value and increase gradually while checking alignment.
Incorrect clearance leading to drawer damage
Drawing the unit fully open before final tightening reveals clearance issues. Many installers skip this check and discover problems only after packing heavy gear. Move the drawer through its complete range with nothing in it.
Look for contact points against suspension brackets, spare tire chains, or body panels.
Skipping pilot hole deburring
Sharp edges around drilled holes tear wiring insulation and catch clothing. Run a file or deburring tool over every hole after drilling. Wipe away metal dust with a vacuum or compressed air.
Leaving sharp edges invites premature wear on anything that contacts those areas during maintenance.
Pros, Cons, and Real-World Drawbacks
Strengths: load capacity, security, integration
Manufacturer specs typically rate these drawer systems for 150 to 300 kilograms depending on model. That handles most overland builds comfortably. The sealed enclosure protects sensitive electronics from dust and moisture.
Integration with the floor creates a low centre of gravity that improves handling compared to loose cargo bins.
Weaknesses: floor modification, weight, cost
Drilling into the floor pan is irreversible and voids certain warranty provisions. The system adds roughly 20 to 35 kilograms empty weight. Quality drawer systems carry a premium price tag compared to DIY alternatives.
Some users report reduced rear seating comfort when the drawer occupies the full width between wheel wells.
Who should skip this install
Buyers who plan to sell their Jeep soon may want to avoid permanent modifications. Solo drivers who rarely carry recovery gear get limited use from a large drawer system. Those running massive lift kits exceeding 3 inches should verify clearance before committing.
Consider Jeep JK 25 inch lift compatibility first if you've already modified suspension height.
| Factor | Benefit | Drawback |
|---|---|---|
| Load capacity | Handles heavy recovery gear | Adds fixed vehicle weight |
| Security | Locked, weather-resistant storage | Requires permanent floor mods |
| Organization | Keeps everything separated and accessible | Reduces flexible cargo flexibility |
| Cost | Long-term durability justifies price | Higher upfront investment |
Tool List & Estimated Time
Essential hand tools and specialty items
You'll need a complete metric socket set ranging from 8mm to 18mm. A torque wrench covering 5 to 30 Nm is essential for proper fastener tension. Drill with adjustable speed and carbide-tipped bits sized to match your hardware.
Trim removal tools prevent clip damage during interior disassembly. A magnetic pickup tray keeps small fasteners from vanishing into floor cavities.
Power tools vs. manual options
Impact drivers speed up bolt removal but increase stripping risk if applied carelessly. Cordless drills work fine for pilot holes when set to low torque. Manual socket wrenches give better feedback when snugging final fasteners.
Many experienced builders switch between power and hand tools depending on the stage.
Realistic timeline for first-time installers
First-time builders typically spend 3 to 5 hours from unboxing to final test. Experienced DIYers with proper lift access complete the job in 2 to 3 hours. Allow extra time if trim removal reveals rusted factory fasteners.
Planning breaks and test fits prevents fatigue mistakes that slow progress.
| Phase | Typical Duration | Critical Checkpoints |
|---|---|---|
| Unboxing and prep | 30 minutes | Verify all components present |
| Interior removal | 45 minutes | Label every clip and fastener |
| Rail mounting | 60 to 90 minutes | Confirm level and clearance |
| Drawer assembly | 45 minutes | Test full extension smoothly |
| Final torque and trim | 30 minutes | Recheck after first drive cycle |
Some builders pair drawer installs with complementary upgrades like how to change tail light bulb on a 2007 Jeep Grand Cherokee procedures to minimize total shop time across multiple projects. Efficient planning keeps costs down and momentum high.
Safety, Legal, and Vehicle Compliance
Secure cargo restraint rules for off-road driving
Unsecured drawers become projectiles during hard braking or rollover scenarios. Ensure the drawer locks firmly in the closed position before moving. Use secondary strap anchors if the manufacturer allows them.
Loose gear inside an unlocked drawer shifts weight unpredictably and compromises handling.
Weight limits and suspension impact
Distributing load across both rails prevents frame twist and uneven stress. Do not exceed the stated maximum capacity per rail or total system rating. Heavy loads alter ride height and steering response.
Verify your suspension can handle the added weight without bottoming out on trail obstacles. Reviewing best Jeep grizzly locker axle upgrades helps some owners manage increased gross vehicle weight from full overland kits.
Local regulations on aftermarket modifications
Certain regions require aftermarket modifications to meet roadworthiness standards. Document your installation with photos and torque records for inspection purposes. Keep the original hardware in case removal is needed for registration renewal.
Some jurisdictions flag floor modifications during safety checks.
Permanent vehicle modifications carry responsibility. Consult local DMV or transport authority guidelines for region-specific requirements. Proper documentation protects you legally and simplifies resale.
When modifying any drivetrain or suspension component like Jeep JK Dana 30 truss upgrades, always cross-reference load ratings to ensure your total setup remains within safe operating parameters.
Maintenance & Long-Term Optimization
Lubricating slides and checking bolts after trail use
Vibration from off-road driving loosens fasteners and dries out slide mechanisms. Inspect every bolt after your first five trail outings and torque them back to spec. Apply a thin coat of white lithium grease to ball-bearing slides quarterly.
Skip heavy grease that attracts dust and grit. Dry lubricants like PTFE spray work better in muddy conditions.
Sealing drill holes against water intrusion
Water seeps through unsealed pilot holes and causes floor pan rust over time. Apply a high-quality automotive sealant around every drilled edge after installation. Use a silicone-based sealant that stays flexible across temperature swings.
Press it into the gap between the bolt shank and metal with a small brush. Recheck seals annually before wet seasons.
Adding accessories like trays, dividers, and locks
Modular drawer inserts keep small items separated and prevent shifting during hard corners. Magnetic tool strips attach to steel drawer bottoms for recovery gear organization. Aftermarket lock kits add security when parking in public areas.
Some builders add rubber matting to protect sensitive electronics from vibration damage.
| Maintenance Task | Frequency | Recommended Product |
|---|---|---|
| Bolt torque check | Every 5 trail runs | Torque wrench, thread locker |
| Slide lubrication | Quarterly | PTFE dry lubricant spray |
| Seal inspection | Annually | Automotive silicone sealant |
| Rail cleaning | After mud/sand exposure | Soft brush, compressed air |
| Hardware replacement | As needed | OEM replacement bolts |
Regular upkeep extends drawer life significantly. Consistency matters more than perfection. A quick visual check after each trip catches issues before they become expensive repairs.
If you're outfitting other interior areas alongside the drawer build, considering best Jeep Grand Cherokee dome lights for interior illumination can help you see your gear clearly at night. Proper lighting makes alignment checks much easier during evening installs.
Comparison: ARB Drawer vs. Other Jeep JK Storage Options
ARB vs. DIY builds vs. competitor brands
ARB drawer systems cost between 800 and 1,400 USD depending on configuration. DIY plywood builds run 150 to 300 USD but require significant fabrication skill. Competitor brands like OTR Moving Solutions and Smittybilt offer similar systems at 600 to 1,100 USD.
Price differences often reflect material quality, slide bearing type, and warranty length.
When to choose each option based on budget and use case
Budget-conscious weekend warriors may prefer DIY builds with basic ball bearings. Serious overlanders benefit from ARB's powder-coated steel construction and sealed sliding mechanism. Smittybilt units work well for moderate trail use where extreme durability isn't critical.
Consider your annual mileage and terrain severity before committing.
Value assessment for overland vs. weekend trails
Overland builders running full kitchen and fridge setups justify premium drawer systems through load capacity and weather sealing. Weekend trail runners occasionally using cargo space may find universal organizers sufficient. The ARB system's low profile preserves rear seating when not in use.
Cheaper alternatives often reduce cabin width more aggressively.
| Option | Cost Range | Durability | Best For |
|---|---|---|---|
| ARB Drawer System | 800-1,400 USD | High | Overland expedition builds |
| OTR Moving Solutions | 600-1,100 USD | Medium-high | Mixed trail and highway use |
| Smittybilt Drawer | 500-900 USD | Medium | Weekend off-roaders |
| DIY Plywood Build | 150-300 USD | Variable | Tinkerers on tight budgets |
For those weighing full vehicle transformations beyond storage, reading about how to install off road lights on a Jeep Wrangler reveals how comprehensive builds balance weight distribution across multiple upgrades.
FAQs About ARB Drawer Installation on Jeep JK
Can I install this without drilling?
Yes, some aftermarket bracket kits clamp onto existing factory bolt points without permanent modification. However, clamped solutions offer less rigidity and may shift under heavy loads. Drilled installations provide superior stability for serious off-road use.
Evaluate your risk tolerance before choosing a no-drill approach.
Does it reduce usable cargo space significantly?
The drawer occupies roughly 60 to 70 percent of rear floor width between wheel wells. You lose some flexibility for oversized items like long lumber or large coolers. Remaining space along the sides works well for flat panels or folding chairs.
Most owners adapt by storing bulky items on roof racks instead.
Will it void my Jeep warranty?
Permanent modifications don't automatically void the vehicle warranty under Magnuson-Moss Warranty Act protections. Dealers must prove the modification caused a specific failure to deny coverage. Keep detailed installation records and photos as documentation.
Consult your dealer's service department before starting if warranty concerns weigh heavily.
What's the maximum load I can safely put in the drawer?
Most ARB models rate between 150 and 300 kilograms total capacity. Distribute weight evenly across both rails to prevent frame stress. Never exceed the per-rail limit stated in your manual.
Heavy static loads alter suspension geometry and tire wear patterns over time.
Can I remove the drawer system later for selling?
Removal is straightforward but leaves visible drill holes in the floor pan. Fill holes with rubber grommets or epoxy body filler to minimize buyer concerns. Some sellers restore original appearance completely before listing.
Document everything you remove to ensure nothing goes missing during disassembly.
How long does the installation typically take?
First-time builders spend approximately 3 to 5 hours from start to finish. Experienced DIYers complete the job in 2 to 3 hours with proper lift access. Allow extra time if interior trim removal reveals corrosion or broken clips.
Planning ahead with all tools laid out prevents mid-project delays.
Is professional installation recommended?
Professional installers complete the job faster and handle unexpected issues efficiently. DIY installation saves 200 to 400 USD in labour costs. Choose professional help if you lack confidence with structural mounting or electrical routing.
Many builders combine DIY mounting with professional wiring assistance.
For additional context on broader Jeep modifications, checking Jeep Compass running boards highlights how different Jeep models approach similar accessibility and utility upgrades across the brand lineup.
Final Verdict: Is This Install Worth Your Time?
Who should attempt this project
This installation suits patient DIYers comfortable with basic automotive fasteners and power tools. If you plan regular overland trips or carry substantial recovery equipment, the organizer payoff justifies the effort. Builders who value clean, integrated aesthetics over temporary solutions will appreciate the finished result.
Those uncomfortable with floor pan modifications should consider removable alternatives instead.
When to hire a professional installer
Professional help makes sense if you lack a vehicle lift or proper torque tools. Complex wiring routes for integrated fridges also benefit from certified electrician input. Time-constrained owners who want flawless results should budget 200 to 400 USD for shop installation.
Many local 4×4 specialty shops offer drawer mounting as a standard service.
Bottom-line recommendation for Jeep JK owners
The ARB drawer system delivers reliable, weather-resistant storage that survives years of trail abuse when installed correctly. Budget 3 to 5 hours of your time and roughly 1,000 USD for the complete package including hardware. The investment pays dividends through improved cargo security and organized gear access.
Skip the install only if you rarely carry more than two passengers or prefer minimal permanent modifications to your Wrangler.
Building out your Jeep responsibly means balancing capability gains against practical trade-offs. Whether you're adding Jeep JK ARB drawer storage, upgrading best Jeep JK hoods, or planning suspension changes like Jeep Gladiator Mopar brake controller towing setups, each modification compounds into a cohesive overland machine. Smart builders research thoroughly before committing to permanent changes.
